Flexible Corrugated Stainless Steel Tube
|
|
|
|
|
| ·Application: |
1. Solar Collector Connecting pipe
2. Hot and cold plumbing installation
3. Gas pipe
4. Used on food,machinery field
5. Alternative plumbing pipe instead of copper |

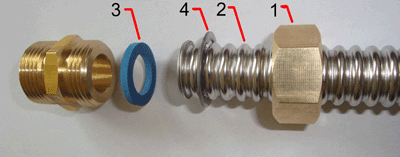

| · Assembly Item & Material |
|
|
|
No.
|
Item
|
Material
|
|
1
|
Nut |
Brass |
|
2
|
Metal Hose
|
SUS304,SUS316L |
|
3
|
Gasket
|
350℃ High-temperature resistance seal |
|
4
|
Cir-Clip
|
Stainless Steel |
Metal Hose Installation Procedure please click here |
| ·Dimension and
Performance |
|
DN
|
φID
mm
|
δ
mm
|
meters per Coil
|
Bending Radius
mm
|
Maximum Applicable
Pressure kgf/cm2
|
Burst Pressure
kgf/cm2
|
|
DN12
|
12
|
16
|
60
|
30
|
17.5
|
200
|
|
DN16
|
16
|
20
|
60
|
50
|
15
|
200
|
|
DN20
|
20
|
25
|
60
|
60
|
12
|
200
|
|
DN25
|
27
|
32
|
30
|
90
|
10
|
120
|
|
DN32
|
33
|
41
|
15
|
120
|
8
|
50
|
|
DN40
|
40
|
48
|
15
|
140
|
6
|
50
|
|
DN50
|
50
|
62
|
15
|
180
|
6
|
35
|
|
| |
|
|
|
